Moduletek Limited QSFP56 200G Passive DAC Test Report

Time: 2024-11-25
        Moduletek has newly launched a 200G passive DAC with model number DAC-QSFP-200G-P-xxAWG-xx.xxM. It adopts QSFP56 encapsulation, supports 4-channel 50G PAM4 signals, and has a maximum transmission distance of 3 meters. Moduletek Laboratory conducted prototype testing on this product to help users better understand its performance indicators and real-world application.
1. Product Description & Pictures

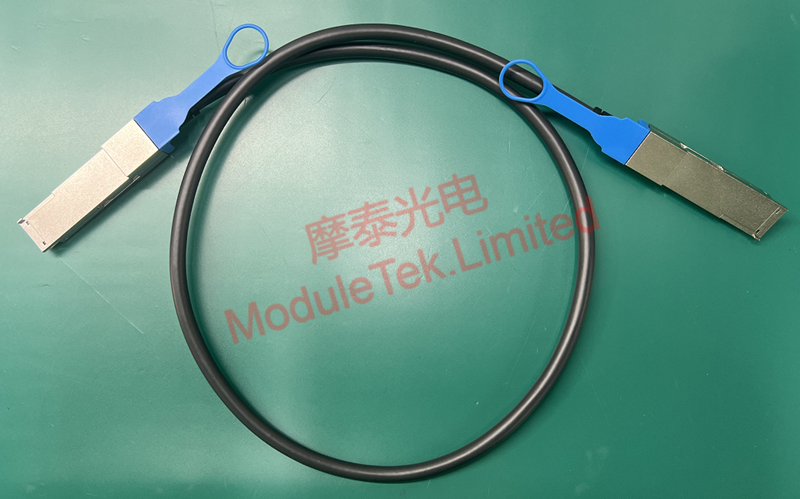

        The 200G passive DAC (model: DAC-QSFP-200G-P-xxAWG-xx.xxM) adopts QSFP56 encapsulation, supports 4-channel 50G PAM4 signal transmission, and has a maximum transmission distance of 3 meters. Its physical appearance is shown below:
Moduletek 200G Passive DAC Appearance
Figure 1 Moduletek 200G Passive DAC Appearance
2. On-Board Compatibility Test
        Taking DAC-QSFP-200G-P-30AWG-1M as the test sample, compatibility testing was conducted on Arista DCS-7060DX4-32-F and Mellanox MSN4700-WS2FC switches respectively, and all tests were completed successfully with stable operation.

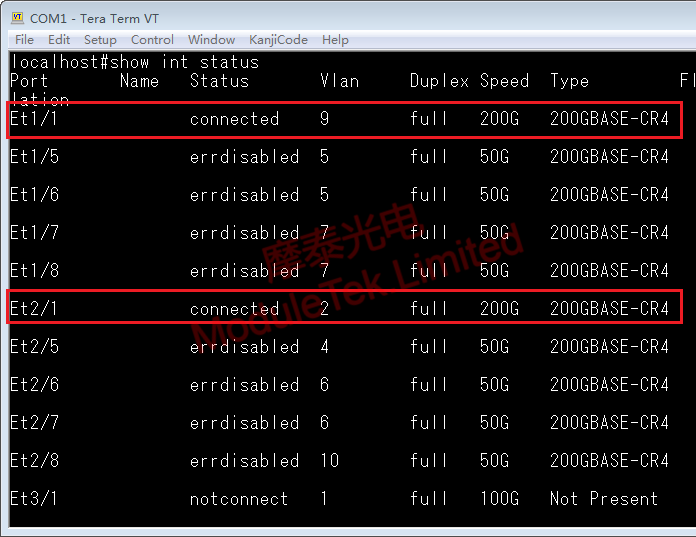

    • Test Results on Arista DCS-7060DX4-32-F
        Identification Results:
        LINK Status:

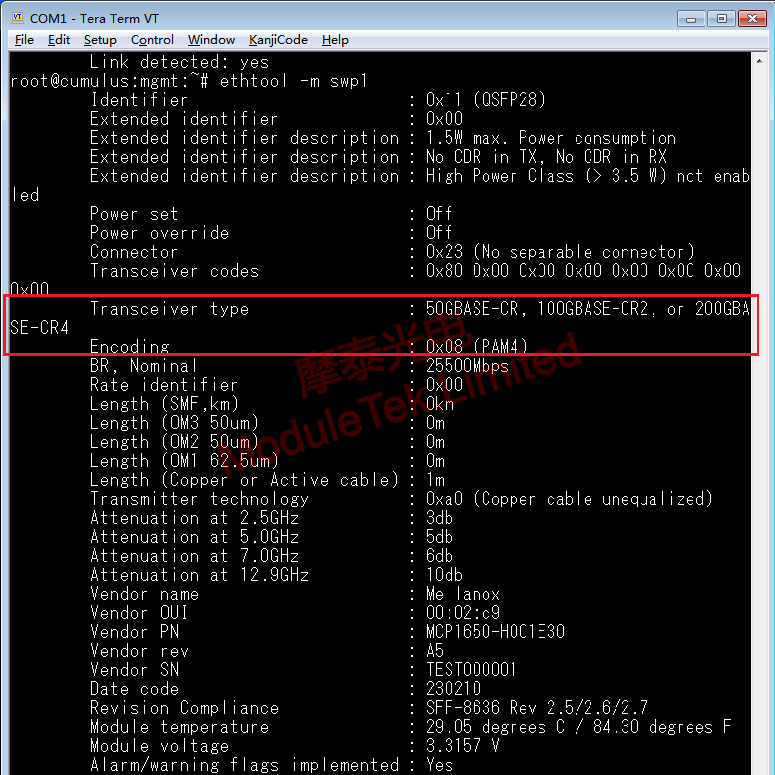

    • Test Results on Mellanox MSN4700-WS2FC
        Identification Results:
        LINK Status:
Conclusion
        Moduletek’s 200G passive DAC has been tested on mainstream switches and has demonstrated excellent compatibility, meeting the requirements of practical application scenarios. Welcome to consult and purchase.
