JNP-QSFP-100G-CWDM Optical Module Test Report

JUNIPER has model JNP-QSFP-100G-CWDM optical module products, can be in single-mode fiber to support 100G Ethernet transmission of 2km, Moduletek Laboratory of the product prototype test, to facilitate a further understanding of the product's performance indicators and the effect of the actual machine use.

1. Product Description

JNP-QSFP-100G-CWDM optical module supports 2km link length on single-mode fiber; the official key parameters and the physical appearance of the module are as follows:

Table 1 JUNIPER JNP-QSFP-100G-CWDM official key parameters

Part Number	740-061408
Speed	100 Gigabit Ethernet
Connector	Duplex LC
Product Type	Optical Transceiver
Transmitter wavelengths ( range )	–1264.5 nm through 1277.5 nm
	–1284.5 nm through 1297.5 nm
	–1304.5 nm through 1317.5 nm
	–1324.5 nm through 1337.5 nm
Transmitter output power , each lane ( minimum )	–6.5 dBm
Transmitter output power , each lane ( maximum )	2.5 dBm
Receiver input power , each lane ( minimum )	–11.5 dBm
Receiver input power , each lane ( maximum )	2.5 dBm
Cable type	SMF
Core size / cladding	9/125 µm
Fiber grade	SMF
Distance	2 km
Maximum Power consumption ( W )	3.5W
Operating Temperature (range)	0°C to 70°C

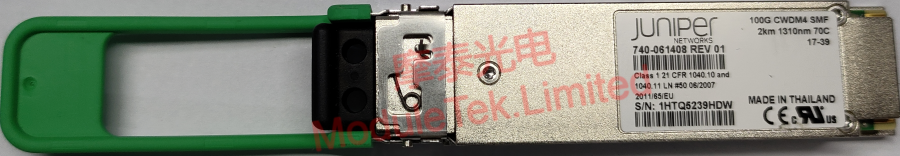

JUNIPER JNP-QSFP-100G-CWDM Optical Module Physical Picture

Figure 1 Optical Module Physical Picture

2. Module identification

Connect JNP-QSFP-100G-CWDM module to JUNIPER QFX5200-32C switch, the module can be normally LINK, the port indicator light up; module information can be normally recognized by the switch, such as module type, model, serial number, rate, transmission distance, etc.; DOM data can be read, and DOM data are within the threshold range, no alarm phenomenon. The DOM data can be read, and the DOM data are all within the threshold range without alarms.

Table 2 JUNIPER JNP-QSFP-100G-CWDM on-switch identification

Item	Switch reading information
LINK
Identify
DOM data

3. Module key parameters testing

The performance indicators of the JNP-QSFP-100G-CWDM sample module on the test board are tested in the laboratory under the condition of 45°C of the module shell, and the test results are as follows;

Table 3 JUNIPER JNP-QSFP-100G-CWDM performance indicators

Parameter	Channel 1	Channel 2	Channel 3	Channel 4	Remarks
Transmit optical power (unit: dBm)	1.687	0.937	-0.407	-0.562
Receiving sensitivity (without fiber) (unit: dBm)	-13.767	-13.462	-15.787	-13.921	5E-5 BER
Receiving Sensitivity (over 2KM fiber)(Unit: dBm)	-13.851	-13.740	-15.211	-13.015	5E-5 BER
Power consumption (unit: W)	2.83

The sample module enclosure was tested at 45°C optical eye diagram with the following eye diagram template and parameters:

Table 4 JUNIPER JNP-QSFP-100G-CWDM Optical Module Eye Diagrams

	Eye diagram		Eye diagram
Channel 1		Channel 3
Channel 2		Channel 4

Table 5 JUNIPER JNP-QSFP-100G-CWDM optical eye diagram parameters

Parameter	Channel 1	Channel 2	Channel 3	Channel 4
Extinction ratio (dB)	5.97	6.50	9.29	6.27
P-P jitter (ps)	9.80	11.32	9.22	10.85
Rise time (ps)	17.50	17.99	16.69	17.94
Down time (ps)	16.00	16.53	16.83	16.88
Margin value (%)	42.1	46.2	47.0	47.3

From the actual test situation, the module's key parameters and indexes are in line with JUNIPER's official claims.

Moduletek Limited is at your service.

If you have any questions about the above content, please contact us via email: sales@moduletek.com
