CISCO SFP-25G-SR-S Optical Module sample report

Time: 2024-01-03
        CISCO has model SFP-25G-SR-S optical module products, can support 25G Ethernet transmission 100M in multi-mode fiber, Moduletek Laboratory has tested the product samples, to facilitate further understanding of the product's performance indicators and the effect of actual machine use.
1. Product Introduction
        CISCO SFP-25G-SR-S optical module supports 70M/100M link length on OM3/OM4; the module requires the FEC mode to be RS-FEC on the host port. the official key parameter information and the physical appearance of the module are as follows:
        Cisco SFP-25G-SR-S
        The Cisco 25GBASE-SR Module supports a link length of 70/100m on OM3/4 MMF.
        This module requires RS-FEC on the host ports.
Table 1 CISCO SFP-25G-SR-S Optical Module Key Parameters
Product
Type
Transmit Power (dBm)*
Receive Power (dBm)*
Transmit and Receive Wavelength (nm)
Max Power Consumption (W)
Maximum
Minimum
Maximum
Minimum
SFP-25G-SR–S
25GBASE-SR 850nm MMF
2.4
-8.4
2.4
-10.3
840 to 860
1.2

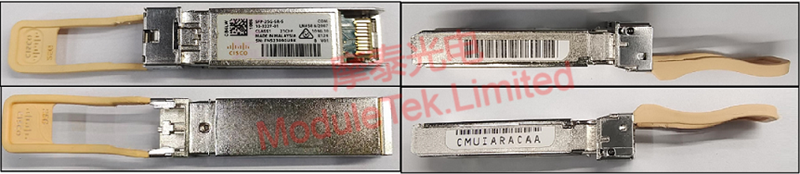

CISCO SFP-25G-SR-S Optical Module Physical Appearance
Figure 1 Optical Module Physical Appearance
2. Module on-board identification
        Connect the SFP-25G-SR-S module to CISCO N9K-C93180YC-EX switch, access the jumper, the module can be normal LINK, the port indicator light; module information can be recognized by the switch, such as the module type, vendor name, model number, serial number, rate, transmission distance, etc.; you can read the DOM data, and the DOM data are within the threshold range, no alarm phenomenon. No alarm phenomenon.
Table 2 Optical Module Upload Recognition Results
Item
Switch reading information
LINK
Identify
DOM Data
FEC mode

3. Module Key Parameter Test
        The performance indexes of the SFP-25G-SR-S sample module on the test board are tested under 45°C in the laboratory module enclosure, and the test results are as follows;
Table 3 Optical module performance index test results
      Parameter
Test data
Unit
Remarks
      Transmit optical power
-1.051
dBm

      Receive sensitivity (not over fiber)）
-14.037
dBm
5E-5 BER
      Receive sensitivity (over 100m OM4 fiber)
-13.969
dBm
5E-5 BER
       Power consumption
0.802
W

        The sample module enclosure was tested at 45°C optical eye diagram with the following eye diagram template and parameters:

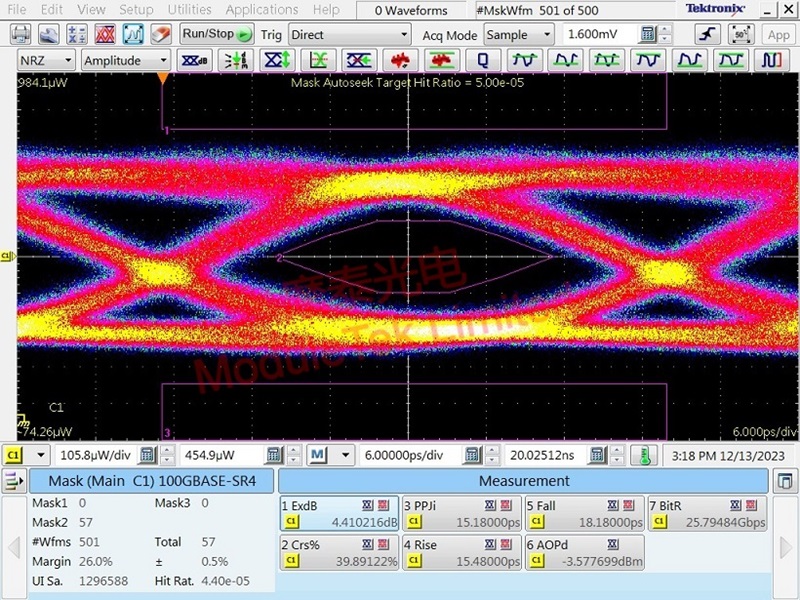

CISCO SFP-25G-SR-S Optical Module Eye Diagrams
Figure 2 Optical Module Eye Diagrams

Table 4  Optical Module Eye Diagram Parameters
Temperature (°C)
Extinction ratio (dB)
P-P jitter (ps)
Rise time (ps)
Down time (ps)
Margin value (%)
45
4.41
15.18
15.48
18.18
26.0
        From the actual test situation, the key parameters of the module are in line with CISCO's official claims.
        Moduletek Limited is at your service.
