Moduletek SFP-25G-ER-I Optical Module sample performance evaluation

Time: 2024-01-03
        Moduletek newly launched model SFP-25G-ER-I-C10 optical module products, can support 25G Ethernet transmission 40KM in single mode fiber, Moduletek Limited laboratory testing of the product samples, to facilitate a further understanding of the product's performance indicators and the effect of the actual machine use.
1. Product Description
        Moduletek SFP-25G-ER-I-C10 Optical Module supports 40KM link length on 25G Standard Single Mode Fiber (SMF) G.652, and supports industrial temperature range (-40~85℃); the module requires FEC mode RS-FEC on the host port for full range operation under 25G. The official ordering information and module appearance are as follows:
Table 1 Optical Module Ordering Information
Model
Product ID
Description
Pull Ring Color
SFP-25G-ER-C-C10
M008200
25GBASE ER, LC interface, up to 40 km
on singlemode fiber, commercial temperature
Red
SFP-25G-ER-I-C10
M008201
25GBASE ER, LC interface, up to 40 km
on singlemode fiber, commercial temperature
Red
  Note: The product ID is for our products:
     1. Product ID is the abbreviated order number of our standard product model.

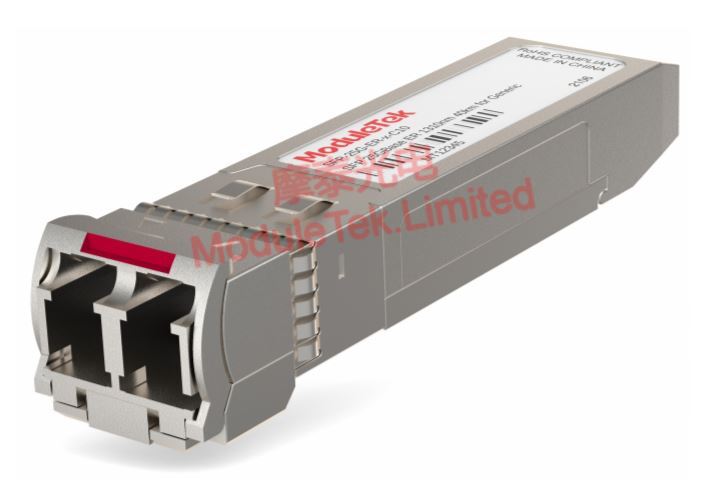

SFP-25G-ER-I-C10 optical module appearance
Figure 1 Optical module appearance
2. Module identification
        Connect the SFP-25G-ER-I-C10 module to CISCO N9K-C93180YC-EX switch, access 10dB attenuation jumper, the module can be normal LINK, the port indicator lights up; module information can be recognized by the switch, such as the module type, vendor name, model number, serial number, rate, transmission distance, etc.; you can read the DOM data, and DOM data are within the threshold range. data are all within the threshold range, and there is no alarm phenomenon.
Table 2 Optical Module Upload Recognition Results
Item
Switch reading information
LINK
Identify
DOM Data
FEC Mode

3. Module Key Parameter Test
        Three-temperature testing of the performance indicators of the SFP-25G-ER-I-C10 sample module on the test board is performed, and the test results are as follows;
Table 3 Optical module performance index test results
Shell test temperature (℃)
Transmit optical power (dBm)
Receiving sensitivity (dBm, BER=5E-5)
Power Consumption(W)
-40
-0.18
-23.0
1.40
40
0.38
-23.5
1.03
85
0.03
-23.0
1.47

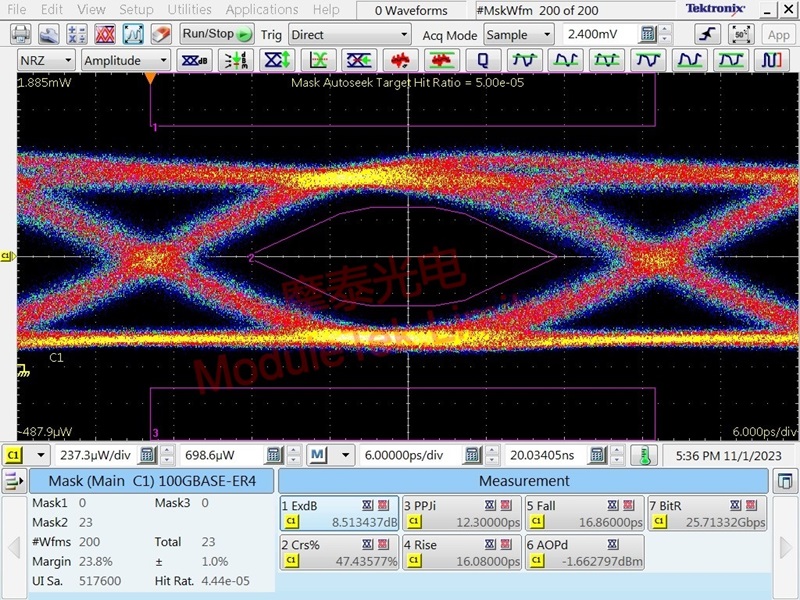

        The sample module housing was tested at 85°C optical eye diagram with the following eye diagram template and parameters:
SFP-25G-ER-I-C10 Optical Module Eye Diagrams
Figure 2 Optical Module Eye Diagrams

Table 4 Optical module eye diagram parameters
Enclosure temperature(°C)
Extinction ratio(dB)
P-P jitter(ps)
Rise time(ps)
Down time(ps)
Margin value (%)
85
8.51
12.3
16.08
16.86
23.8

        From the actual test situation, the module's key parameters and indexes are in line with the definition of Moduletek's datasheet, and are comparable with the performance of similar modules officially publicized by CISCO.
        Moduletek can provide cost-effective and high-performance SFP-25G-ER commercial temperature modules and industrial temperature modules.
        If you have any questions about the above content, please contact us via email: sales@moduletek.com
