ARUBA J9151E Optical Module sample report
Time: 2024-01-03
ARUBA company has model J9151E optical module products, can support 10G Ethernet transmission 10KM in single-mode fiber, Motek Optoelectronics Laboratory of the product prototype test, to facilitate further understanding of the product performance indicators and the actual machine use effect.
1. Product Description
ARUBA J9151E optical module supports 10KM link length on 10G standard single-mode fiber (SMF) G.652. The official key parameter information and the physical appearance of the module are as follows:
Table 1 Key parameters of ARUBA J9151E optical module
|
Product Name
( SKU ) |
Central wl
( nm ) |
Fiber mode
|
Fiber diameter
( um ) |
Bandwidth
( MHz * km ) |
Transmission distance
|
Optical parameters
( dBm ) |
|
|
Transmit power
|
Receive power
|
||||||
|
Aruba 10G SFP + LC LR10km SMFXCVR (19151E)
|
1310
|
SMF
|
9/125
|
N / A
|
10km(6.21 miles )
|
-8.2 to +0.5
|
-14.4 to +0.5
|

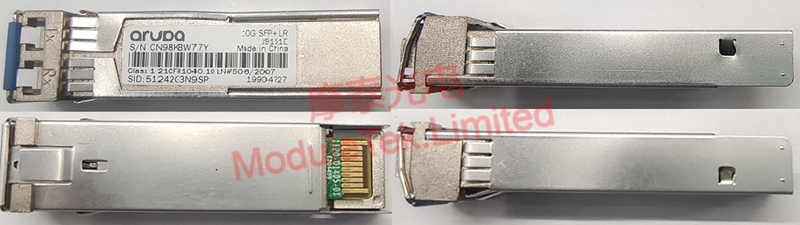

Figure 1 ARUBA J9151E Optical Module Physical Appearance
2. Module on-board identification
Connect the J9151E module to ARUBA 6300M switch, access the jumper, the module can be normal LINK, the port indicator lights up; module information can be recognized by the switch, such as the module type, model, connector type, wavelength, rate, etc.; DOM data can be read, and the DOM data are within the threshold range, no alarm phenomenon.
Table 2 ARUBA J9151E Optical Module Recognized by the Switch
|
Item
|
Switch reading information
|
|
LINK
|
|
|
Identify and DOM
|
|
3. Module key parameters testing
a. Laboratory module shell 45 ℃ conditions, the J9151E sample module on the test version of the performance indicators are tested, the test results are as follows;
Table 3 ARUBA J9151E optical module performance index test results
|
Parameter
|
Test data
|
Unit
|
Remarks
|
|
Transmit optical power
|
-2.3
|
dBm
|
|
|
Receiving sensitivity (without fiber)
|
-16.2
|
dBm
|
0 BER
|
|
Receive sensitivity (over 10km fiber)
|
-16.2
|
dBm
|
0 BER
|
|
Power consumption
|
0.75
|
W
|
|

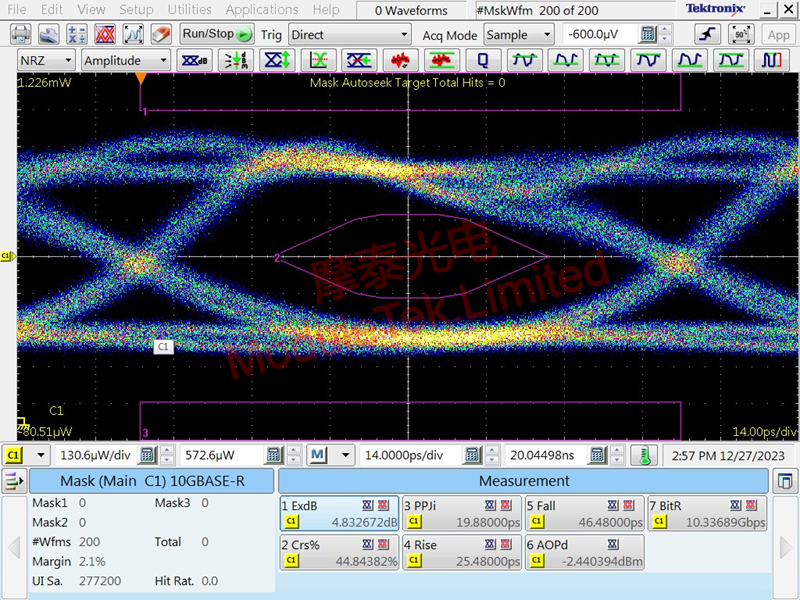

b. Sample module shell 45 ℃ light eye diagram test, eye diagram template and parameters are as follows:
Figure 2 ARUBA J9151E optical module eye diagram template and parameters
Table 4 ARUBA J9151E optical module eye diagram parameters
|
Temperature (°C)
|
Extinction ratio (dB)
|
P-P jitter (ps)
|
Rise time (ps)
|
Descent time (ps)
|
Margin value (%)
|
|
45
|
4.83
|
19.88
|
25.48
|
46.48
|
2.1
|
From the actual test situation, the module's key parameters and indexes are in line with ARUBA's official claims.
