首页 > Home > Application Notes > Test Report for Huawei Original Electrical Port Module SFP-GE-T Model 02314171Test Report for Huawei Original Electrical Port Module SFP-GE-T Model 02314171
Time: 2024-11-27
There are a total of 4 models of the original electrical port module SFP-GE-T provided on Huawei's official website, Moduletek Laboratory has conducted tests on the sample module of model 02314171 to facilitate a better understanding of the product's performance indicators and actual in-device usage effects.
1. Product Description
The key parameters provided by the official information is relatively simple, as shown in the table below:
Table 1 Huawei 02314171 sample key information
| Item | Description |
| Part number | 02314171 |
| Version support | Supported in V100R001C00 and later versions |
| Transceiver form factor | SFP |
| Cable Type | CAT5 UTP/STP |
| Standards compliance | 1000BASE-T (SFP-GE-T) |
| Connector type | RJ45 |
| Transmission Distance | 100 m |
2. Appearance photos

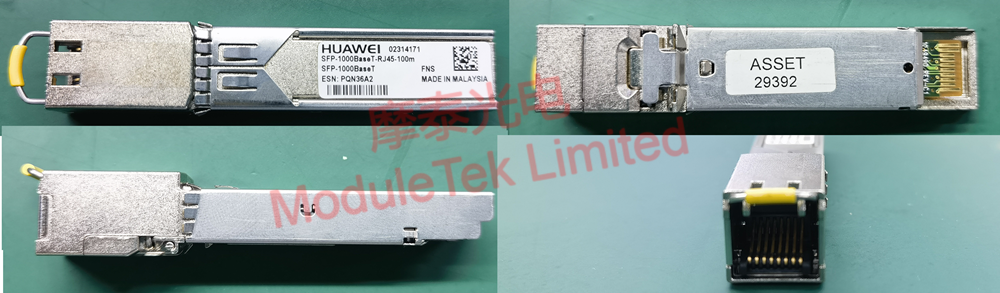

The appearance photo of Huawei original electrical port module SFP-GE-T model 02314171 is shown in the figure below, and you can see that its housing is a sunken unlocking structure.
Figure 1 Physical drawing of Huawei 02314171 sample
3. Module on-board compatibility test
Compatibility tests were conducted on the sample of model 02314171 on Huawei S5700, S5700S, S6700, and S9303 switches respectively, and the test items include: on-board identification, whether it is abnormally LINK without plugging in the cable, whether it is normally LINK when plugging in the cable, and whether it is normal LINK with the counterpart equipment of 1000M/100M/10M PING through test. After testing, each test item passes on all devices.
Table 2 Compatibility test results of Huawei 02314171 samples on S5700 and S5700S
|
Item
|
Module compatibility test results on S5700
|
Module compatibility test results on S5700S
|
|
Identify
|
|
|
|
LINK case without plugging in the network cable
|
|
|
|
LINK with cable plugged in
|
|
|
|
PING test with 1000M port at the opposite end
|
|
|
|
PING test with 100M port at the opposite end
|
|
|
|
PING test with 10M port at the opposite end
|
|
|
Table 3 Compatibility test results of Huawei 02314171 samples on S6700 and S9303
|
Item
|
Module compatibility test results on S6700
|
Module compatibility test results on S9303
|
|
Identify
|
|
|
|
LINK case without plugging in the network cable
|
|
|
|
LINK with cable plugged in
|
|
|
|
PING test with 1000M port on the opposite end
|
|
|
|
PING test with 100M port on the opposite end
|
|
|
|
PING test with 10M port on the opposite end
|
|
|
4. Analysis of test results
According to the 02314171 sample PHY chip register configuration, it can be seen that its initial mode is pure Gigabit and the Los pin function is disabled.
From its test on the above four switches, on S5700S and S6700 switches, the module works in pure Gigabit mode and can only interconnect with 1000M ports on the opposite end; on S5700 and S9303 switches, the module works in SGMII 3-speed adaptive mode and can interconnect with 1000M/100M/10M ports on the opposite end.
The mode of Mosuletek's Gigabit electrical port module SFP-GE-T-x-D17 is fully compatible with Huawei's original electrical port module SFP-GE-T (Model: 02314171), welcome to purchase
Moduletek Limited is at your service.
If you have any questions about the above content, you can contact us by Email : web@moduletek.com.
