JUNIPER 740-061409 Optical Module Sample Report

Time: 2025-01-14
        JUNIPER offers the optical module product model 740-061409, which can support 10KM Ethernet transmission over single-mode fiber, Moduletektek Laboratory has conducted tests on the prototype of this product to facilitate a better understanding of its performance indicators and actual application effects in equipment.
1. Product Description
        JUNIPER 740-061409 optical module in the standard single-mode fiber to support 10KM link length; the official key parameters of information and the physical appearance of the module are as follows:
Table 1 JUNIPER 740-061409 official key parameters
  Part Number
740-061409
  Speed
100 Gigabit Ethernet
  Connector
Duplex LC
  Product Type
Optical Transceiver
  Transmitter wavelengths ( range )
1294.53 nm through 1296.59 nm

1299.02 nm through 1301.09 nm

1303.54 nm through 1305.63 nm

1308.09 nm through 1310.19 nm
  Transmitter output power , each lane ( minimum )
–4.3 dBm
  Transmitter output power , each lane ( maximum )
4.5 dBm
  Receiver input power , each lane ( minimum )
–10.6 dBm
  Receiver input power , each lane ( maximum )
4.5 dBm
  Cable type
SMF
  Core size / cladding
9/125 µm
  Distance
10 km
  Maximum Power consumption ( W )
3.5W
  Operating Temperature (range)
0°C to 70°C

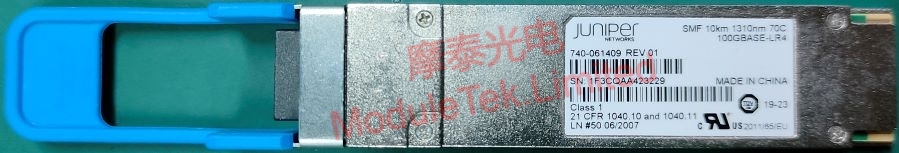

Figure 1 JUNIPER 740-061409 Optical Module Physical Picture
2. Module identification
        The module can establish a normal LINK, and the port indicator light is illuminated after connecting the 740-061409 module to the JUNIPER QFX5200-32C switch, and the module information can be normally recognized by the switch, such as the module type, model number, serial number, rate, transmission distance, etc.; you can read the DOM data, and the DOM data are within the threshold range, no alarm phenomenon.
Table 2 JUNIPER 740-061409 on-switch identification
Item
Switch reading information
LINK
Identify
DOM data


3. Testing of the module's key parameters
         Under laboratory conditions where the module housing is maintained at 45℃, the performance indicators of the JUNIPER 740-061409 sample module on the test board were tested. The test results are as follows:
Table 3 JUNIPER 740-061409 performance indicators
Parameter
Channel 1
Channe 2
Channe 3
Channe 4
Remarks
Transmit optical power (unit: dBm)
2.258
2.922
2.146
2.722

Receiving sensitivity (without fiber) (unit: dBm)
-12.245
-12.687
-12.722
-12.387
0 BER
Receiving sensitivity (over 10KM fiber) (unit: dBm)
-12.974
-12.903
-13.039
-12.206
0 BER
Power consumption (unit: W)
3.28

        The parameters of the optical eye diagram test and eye diagram template for the sample module under a housing temperature of 45℃ are as follows:

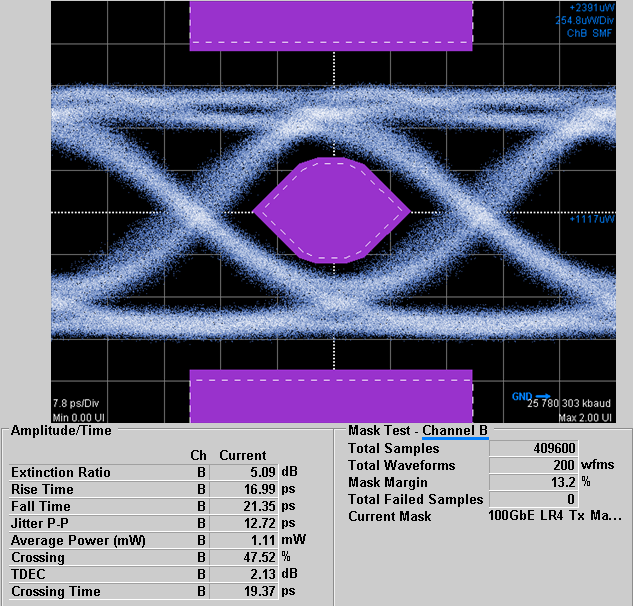

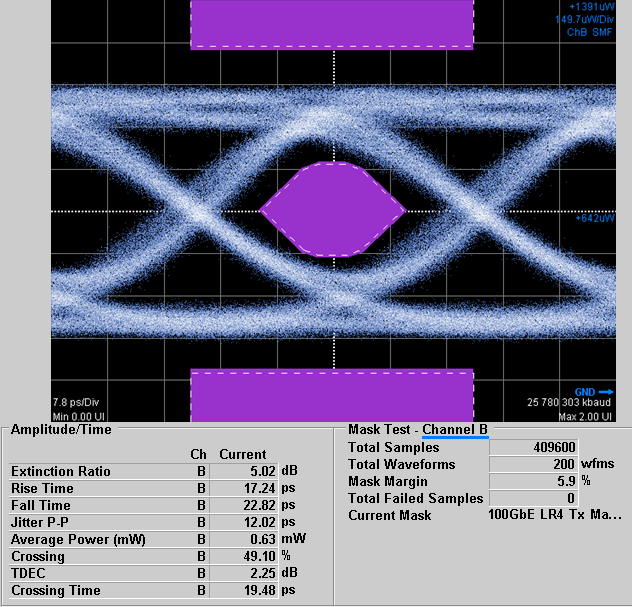

Table 4 JUNIPER 740-061409 optical module eye diagrams

Eye diagram

Eye diagram
Channel 1
Channel 3
Channel 2
Channel 4

Table 5 JUNIPER 740-061409 optical eye chart parameters
Parameter
Channel 1
Channel 2
Channel 3
Channel 4
Extinction ratio (dB)
4.77
5.09
5.02
4.73
P-P jitter (ps)
14.12
12.72
12.02
14.58
Rise Time (ps)
17.18
16.99
17.24
16.54
Down time (ps)
22.12
21.35
22.82
21.23
Margin value (%)
10.5
13.2
5.9
3.6

        From the actual test situation, the key parameter index of the module is in line with the official claim of JUNIPER.
