ARUBA JL563A electrical port Module sample report

Time: 2024-01-03
        ARUBA company has model JL563A electrical interface module products, support 10Gbps rate, Moduletek Limited Laboratory of the product samples for testing, to facilitate further understanding of the product's actual machine use effect.
1. Product Description
        ARUBA JL563A module supports 30M link length in 10G super category 6 and above cable. The official description and physical appearance of the module are as follows:
Table 1 ARUBA JL563A module official description
Product name ( SKU )
Transmission distance
Data rate
Cable type
Connector type
Aruba 10GBASE- T SFP + RJ45 30m Cat6A XCVR (JL563A)
30 m (98.43 ft )
10G
STP Cat6A
RJ -45

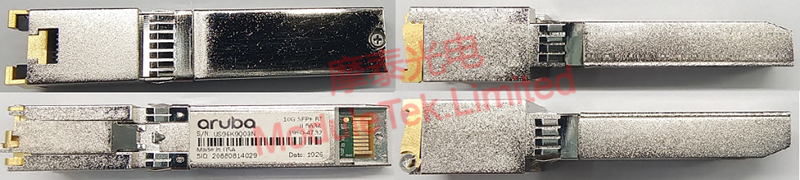

ARUBA JL563A Module Physical Exterior View
Figure 1 ARUBA JL563A Module Physical Exterior View
2. Module on-boarding effect
        The JL563A module is connected to ARUBA 6300M switch with Cat6A cable, and the built-in RJ45 port of CISCO WS-C3560CX-8XPD-S switch is connected to the opposite end of the module; the module can be LINKed normally, and the information of the module can be recognized by the switch, such as the module type, model number, serial number, and rate, etc., and there is no alarm phenomenon.
Table 2 ARUBA JL563A Module Upload Result
Item
Information read by the switch
LINK
Identify

3. Module Key Parameter Test
        The power consumption of the JL563A sample module on the test board was tested under 45°C in the laboratory module enclosure, and the test results are as follows;
Table 3 ARUBA JL563A module key parameters test results
Parameter
Test data
Unit
Remarks
Power consumption (1G 100m@Cat5e)
1.385
W

Power consumption(10G 30m@Cat6A)
1.98
W


        From the actual test situation, the working performance of this module on the switch is in line with ARUBA's official claim.
        Moduletek Limited is at your service.
        If you have any questions about the above content, you can contact us by Email : web@moduletek.com
