JUNIPER JNP-SFPP-10GE-T Electrical Port Module Compatibility
Time: 2025-01-23
JNP-SFPP-10GE-T electrical interface module product of JUNIPER support 100M/1G/10Gbps rate, Moduletek Laboratory has conducted tests on the prototype of this product to facilitate a better understanding of its actual performance in practical use.
1 . Product Description
JUNIPER JNP-SFPP-10GE-T module supports a link length of 30m at 10G rate for CAT6e and above cables, and a link length of 30m at 100M/1G rate for CAT5e and above cables. The official description and physical appearance of the module are as follows:
Table 1 JUNIPER JNP-SFPP-10GE-T Official Key Parameters
|
Part Number
|
740-083295
|
|
Speed
|
10 Gigabit Ethernet
|
|
Connector
|
RJ-45
|
|
Product Type
|
Copper
|
|
Transceiver Type
|
SFP+
|
|
Cable type
|
Cat 5e(100M/1Gbps)
|
|
|
Cat 6e(10Gbps)
|
|
Distance
|
30 m
|
|
Maximum Power consumption (W)
|
2.5 W
|
|
Operating Temperature (range)
|
0° C to 70° C
|
|
Storage temperature
|
–40° C to 85° C
|
|
Additional Information
|
Starting from Junos OS 20.2R1, JNP-SFPP-10GE-T transceiver supports multi-rate 100M/1G/10G auto-negotiation on QFX5100, QFX5110 products. The EX4650-48Y, QFX5120 operates at only two speeds (10 Gbps and 1 Gbps). Prior to Junos OS 20.2R1, it can operate at 10GE rate only. Multi-rate 100M/1G/10G auto-negotiation is not yet supported on QFX10008, QFX10016 and ACX7509. EX4600-40F supports 100M/1G/10G auto-negotiation starting from Junos OS 20.3R1
|

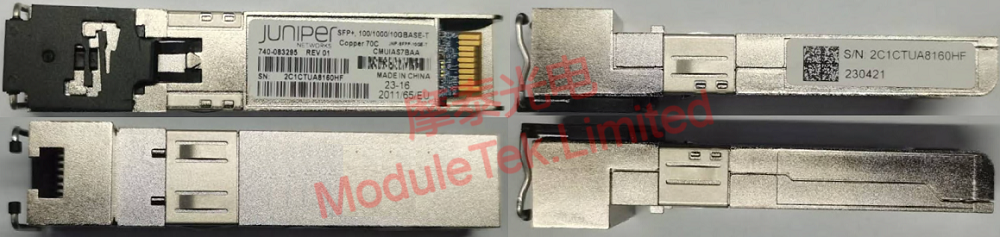

Figure 1 JNP-SFPP-10GE-T Physical Demonstration
2. Module on-boarding effect
Insert the JNP-SFPP-10GE-T module into the Juniper QFX5100-48S-DC-AFO switch (version:Junos: 21.4R3.16),and using Cat6A cables to connect the CISCO WS-C3560CX-8XPD-S switch whicth built-in RJ45 port; By adjusting the interface rate of CISCO switch, JNP-SFPP-10GE-T can normally establish a LINK connection at 100M/1G/10G rates and successfully transmit services; and information of JNP-SFPP-10GE-T can be normally recognized by the switch, such as the module type, model number, serial number, etc., and there is no alarm phenomenon.
Table 2 JNP-SFPP-10GE-T on-board test
|
Item Information
|
read by the switch
|
|
Identify
|
|
|
LINK
|
|
|
ping through (10G rate)
|
|
|
ping through (1G rate)
|
|
|
ping through (100M rate)
|
|
3. On which devices the module is supported
Not all 10GbE switches of JUNIPER support the operation of JNP-SFPP-10GE-T module, Moduletk Laboratory summarized the following platforms support the use of JNP-SFPP-10GE-T module by the official information of JUNIPER.
Table 3 JNP-SFPP-10GE-T Compatible Device List
|
Product Family
|
Product Family
|
Minimum Version Requirement
|
Description
|
|
Router
|
ACX7509
|
Junos OS Evolved 21.4R1
|
|
|
Switch
|
EX4400
|
Junos OS 23.4R1
|
|
|
Switch
|
EX4400-24X
|
Junos OS 23.4R1
|
|
|
Switch
|
EX4400-48F
|
Junos OS 23.4R1
|
|
|
Switch
|
EX4600
|
Junos OS 20.3R1
|
|
|
Switch
|
EX4650-48Y
|
Junos OS 19.3R1
|
|
|
Switch
|
QFX5100
|
Junos OS 19.4R1
|
|
|
Switch
|
QFX5110
|
Junos OS 19.4R1
|
|
|
Switch
|
QFX5120-48Y
|
Junos OS 19.3R1
|
|
|
Switch
|
QFX10008
|
Junos OS 19.3R1
|
|
|
Switch
|
QFX10016
|
Junos OS 19.3R1
|
|
|
Interface card
|
ACX7509-FPC-20Y
|
Junos OS Evolved 21.4R1
|
Host ACX7509
|
|
Interface card
|
QFX10000-60S-6Q
|
Junos OS 19.3R1
|
Host QFX10008, QFX10016
|
|
Interface card
|
EX4400-EM-4S
|
Junos OS 20.3R1
|
Host EX4400, EX4400-24X, EX4400-48F
|
|
Interface card
|
EX4400-EM-4Y
|
Junos OS 20.3R1
|
Host EX4400, EX4400-24X, EX4400-48F
|
Remarks: 1. The specific supported rates are closely related to the system software version.
2. The list of compatible devices is current as of the press release date. New models may be added subsequently, and for the latest information, please refer to the official Juniper website.
The performance of this module when operating on the switch is consistent with Juniper's official claims based on the actual test results.
Moduletek Limited is at your service.
If you have any questions about the above content, please contact us via email: sales@moduletek.com
